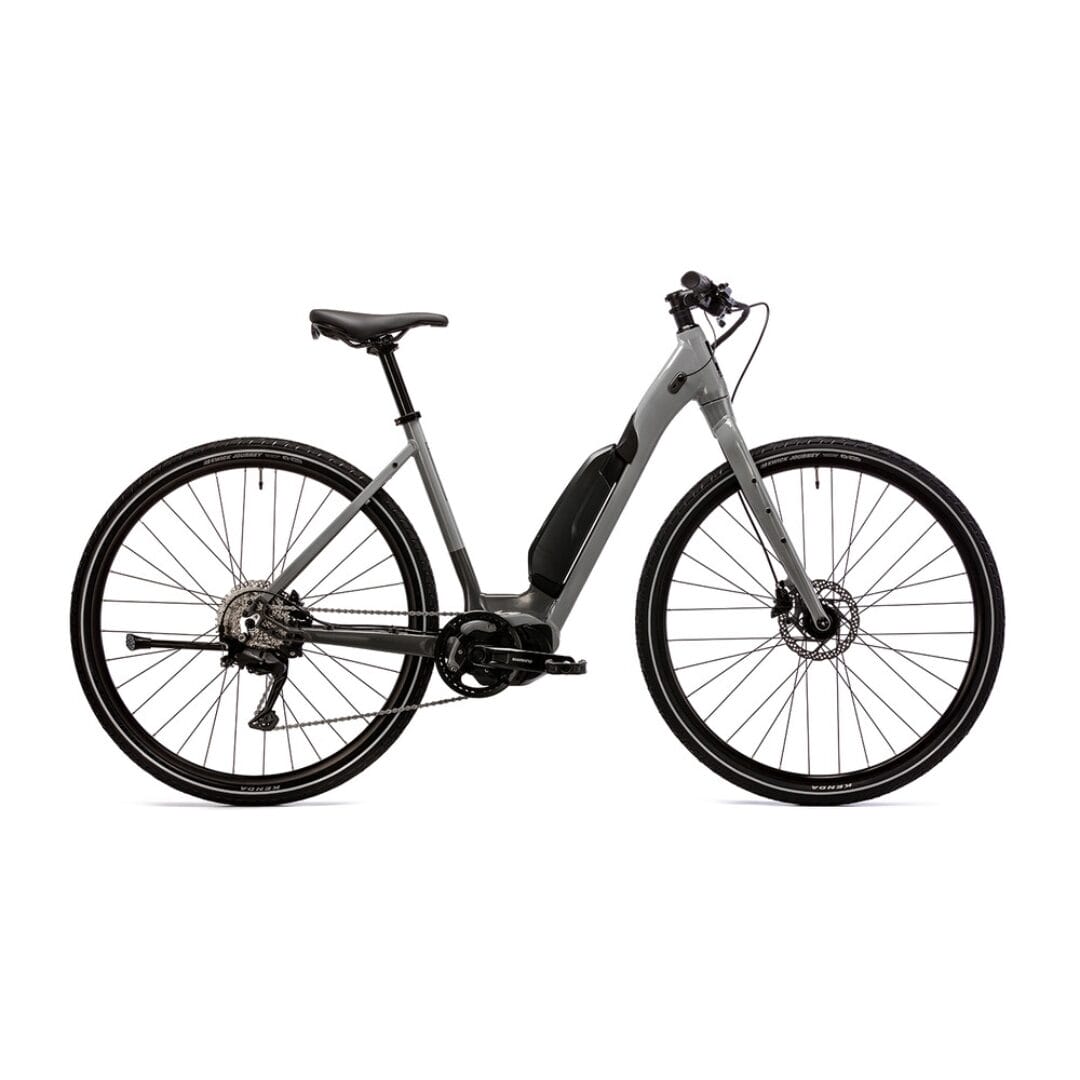

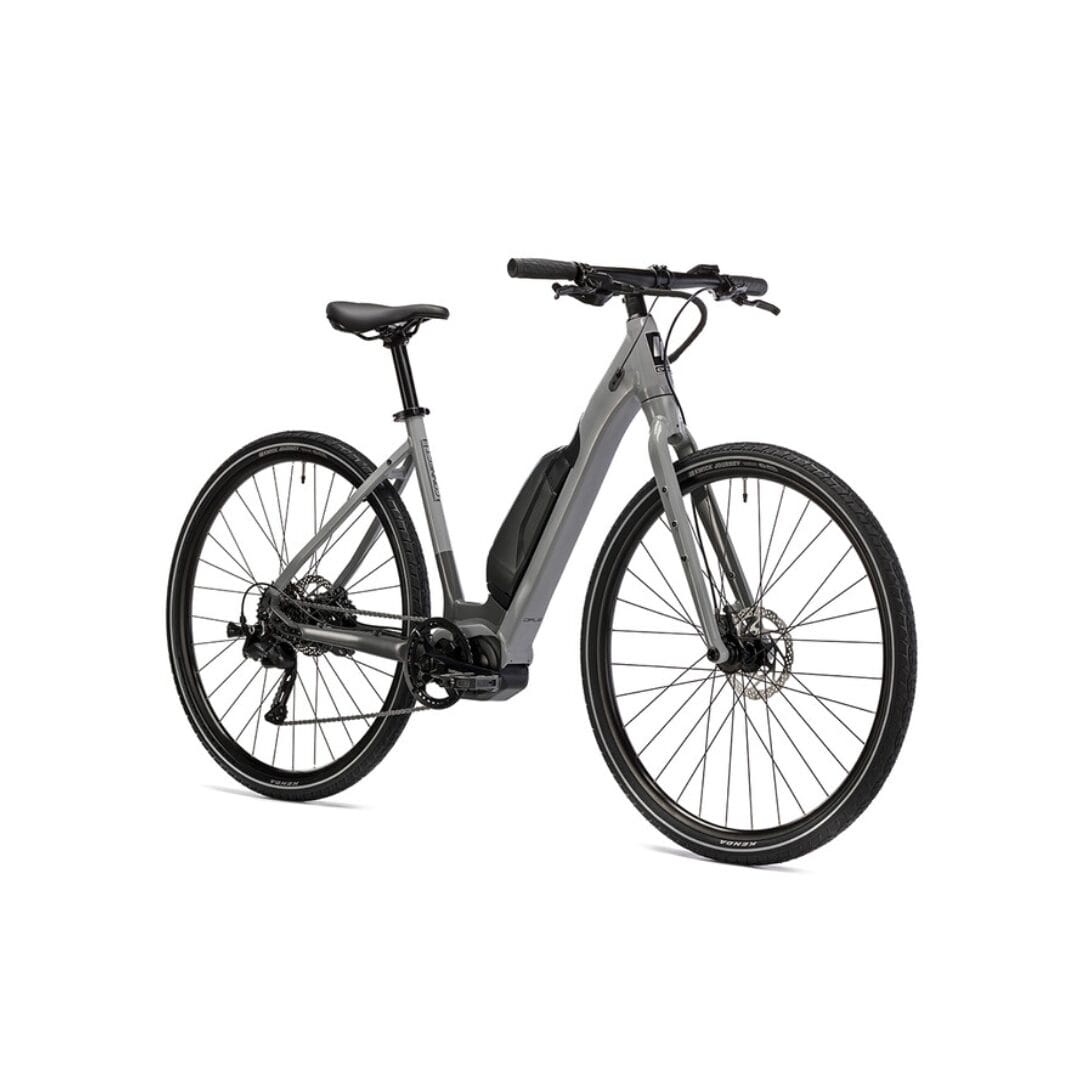

OPUS CONNECT E5000
OPUS CONNECT E5000 - Image 2

OPUS CONNECT E5000

$ 3 199.95

An easy-to-ride open frame that everyone will appreciate

Lightweight 6061 aluminum fork

Shimano Cues 1×9 transmission

Shimano MT200 hydraulic disc brakes

Shimano E5000 and Shimano E-8014 418Wh battery





Out of stock

Category: Brand:

Description

Frame Meta 30 aluminum
Fork Aluminum Tapered 1-1/2 to 1-1/8 inch
Sizes S-M-L
Shifters Shimano CUES U4000 9
Front Derailleur N/A
Rear Derailleur Shimano CUES U3020
Brakes Shimano BR-MT200 hydraulic disc
Brake Levers Shimano BL-MT200
Crank Shimano FC-E5010
Chainrings 38
Bottom Bracket N/A
Cassette Cogs Shimano 11-36
Chain KMC eGlide EPT
Headset FSA Orbit integrated sealed
Handlebar Promax 25mm rise
Stem Promax 60/70mm
Grips/Tape Velo ergo dual density
Saddle Opus E-Bike with handle
Seatpost Promax 30.9 x 350/300mm
Wheels/Rims Weinnman U28 TL
Hubs Formula/Shimano
Tires Kenda Kwick Journey 700 x 42
Pedals Wellgo flat
Other Shimano E-5000 250W 40Nm Drive Unit
Other Shimano E-8014 418Wh 36V 11.6Ah battery
Other SC-E5000 Switch with integrated display

Geometries

SIZE S M L
SIZE (CM)
RIDER (± 5CM) 155 165 178
RIDER (± 2″) 5’2″ 5’6″ 5’10”
SEAT TUBE 440 480 520
TOP TUBE 590 605 620
HEAD TUBE 145 145 155
HEAD ANGLE 71 71 71
SEAT ANGLE 73 73 73
CHAIN STAY 440 440 440
BB DROP 65 65 65
STACK 623 623 632
REACH 400 415 427
STAND OVER 480 480 480
BAR 580 580 580
STEM 60 60 70
CRANK 170 170 170
